Symmetry
No description yet. This curated deck is ready for daily study.
Card preview (24)
Number of faces on a cube?
6
Number of vertices on a cube?
8
Number of faces on a tetrahedron?
4
Number of faces on an octahedron?
8
Number of vertices on a tetrahedron?
4
“Procedure to Determine” C<strong>2v</strong>
“Procedure to Determine” Not a special group C2 (yes, principal axis) No ⊥C2 No σh 2σv
Chiral Point Groups
Cn ,D<b>n </b>T, O, and I groups only
All chiral molecules are polar True or False
False (e.g. Molecules in the Dn point group are chiral but not polar.)
Chiral Molecule
Molecules that lack an improper rotation axis
“Procedure to Determine” C Point Groups
“Procedure to Determine” Not a special group No n⊥C2 to principal axis
“Procedure to Determine” D Point Groups
“Procedure to Determine” Not a special Group n⊥C2 to principal axis
“Procedure to Determine” D<strong>5d</strong>
“Procedure to Determine” Not a special group C5 (yes, principal axis) 5 ⊥C2 No σh 5σd
“Procedure to Determine” C<strong>∞V</strong>
“Procedure to Determine” Linear (Yes) No ⊥C2
“Useful Matrices”

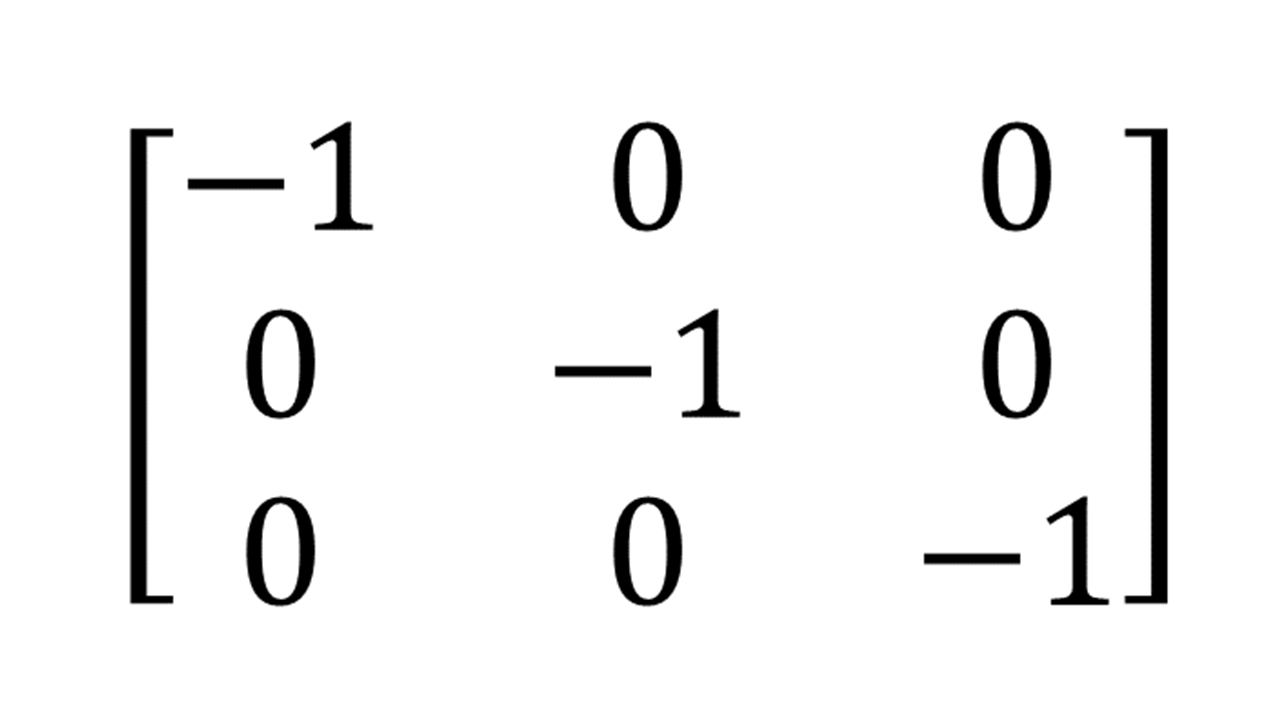

“Useful Matrices” i

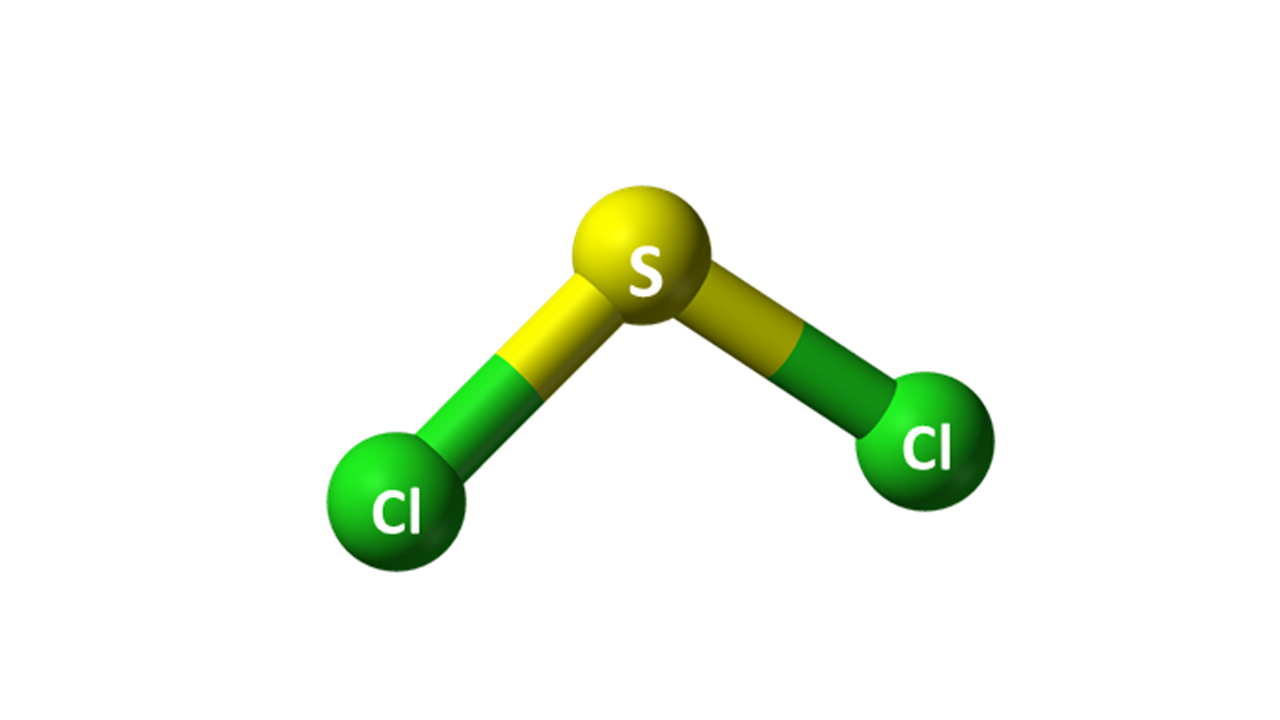

“Point Groups” Bent corresponding point group
C2v

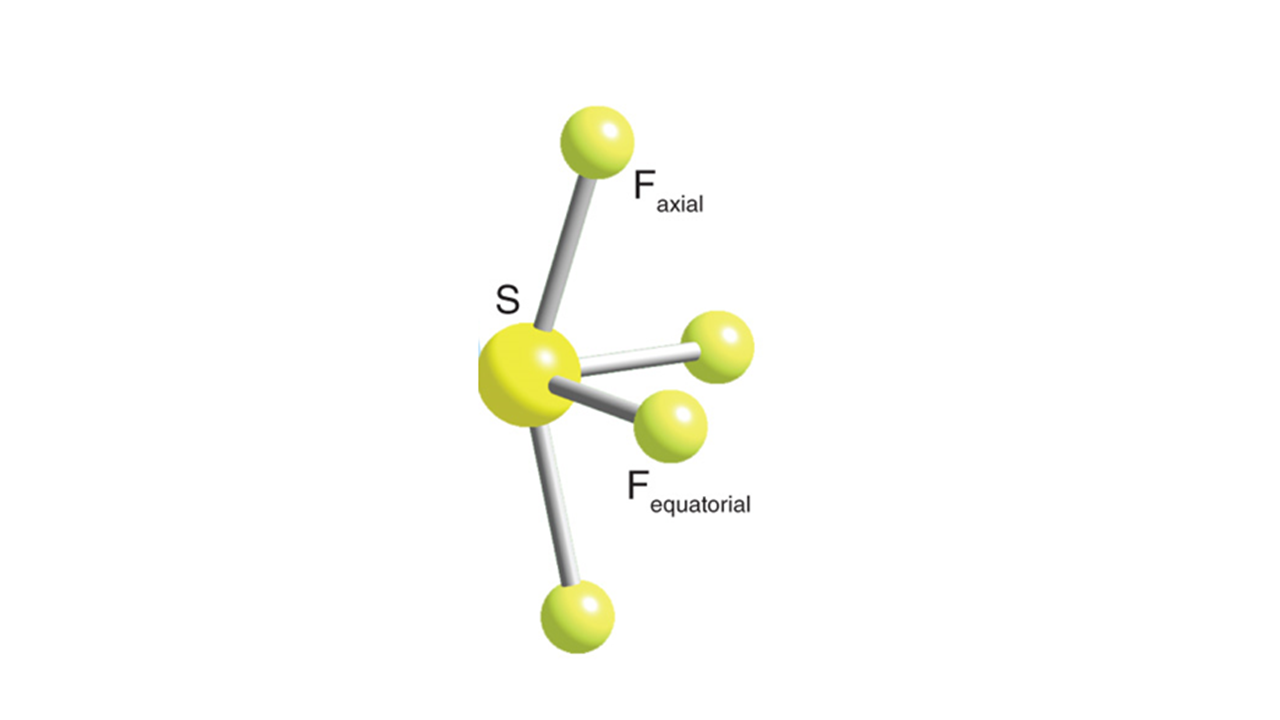

“Point Groups” SeeSaw corresponding point group
C2v

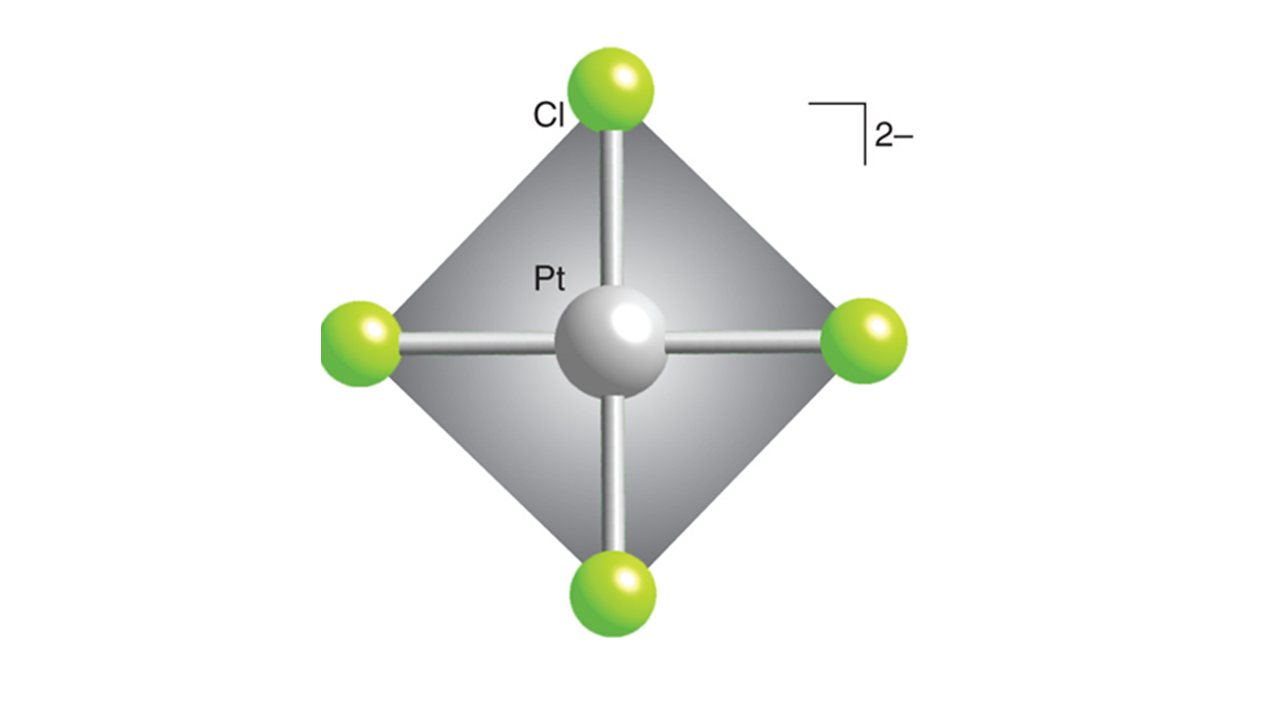

“Point Groups” Square Planar corresponding point group
D4h

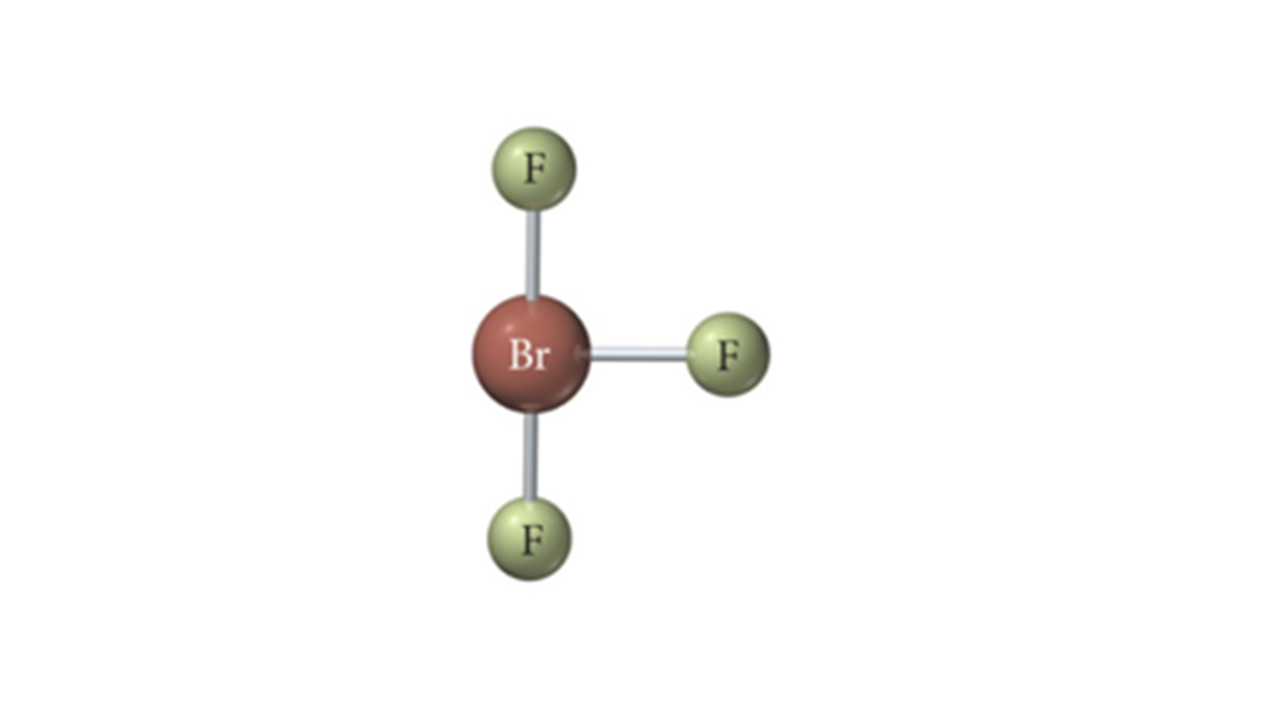

“Point Groups” T-Shape corresponding point group
C2v

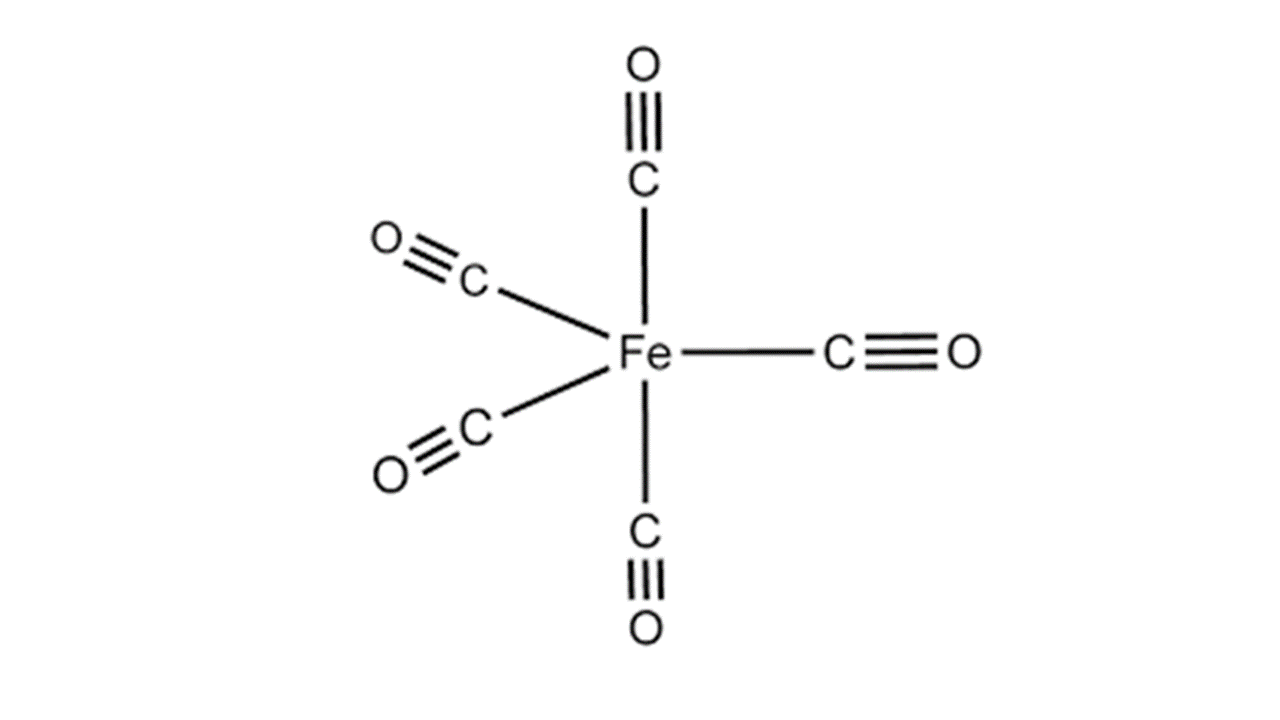

“Point Groups” Trigonal Bipyramidal corresponding point group
D3h

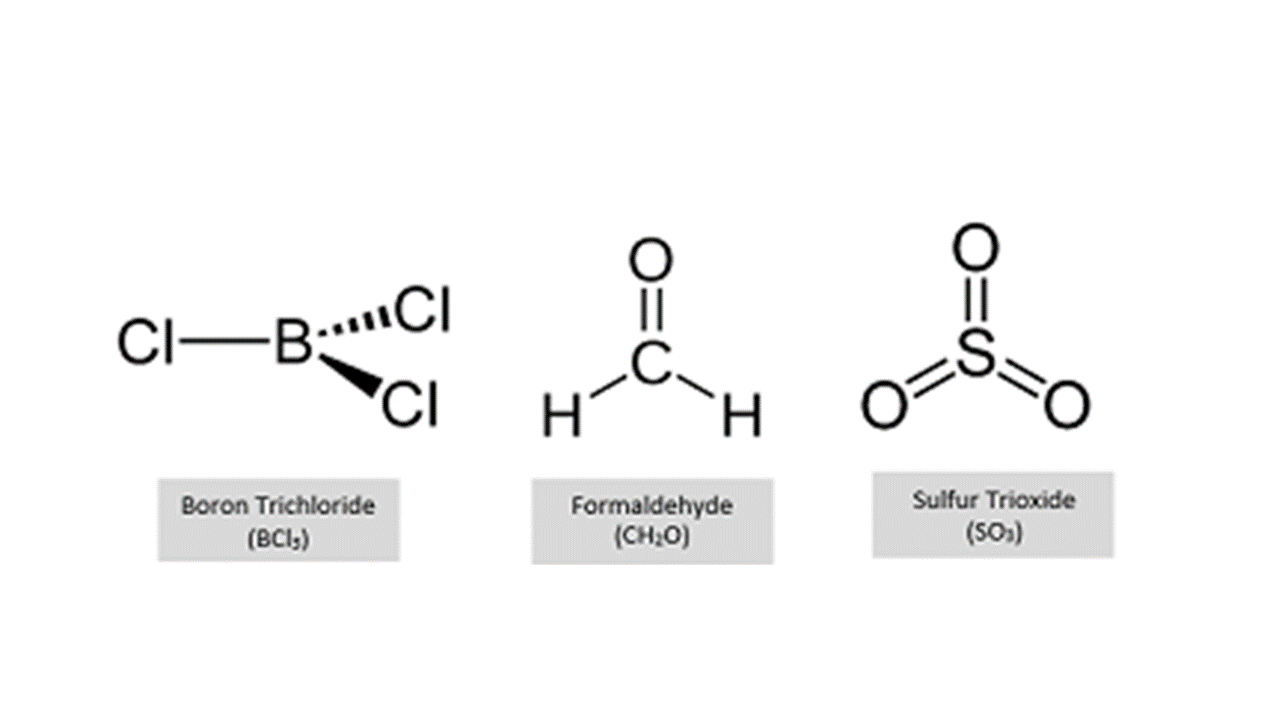

“Point Groups” Trigonal Planar corresponding point group
D3h (SO3) C2v (Acetone) Cs (Methyl formate)

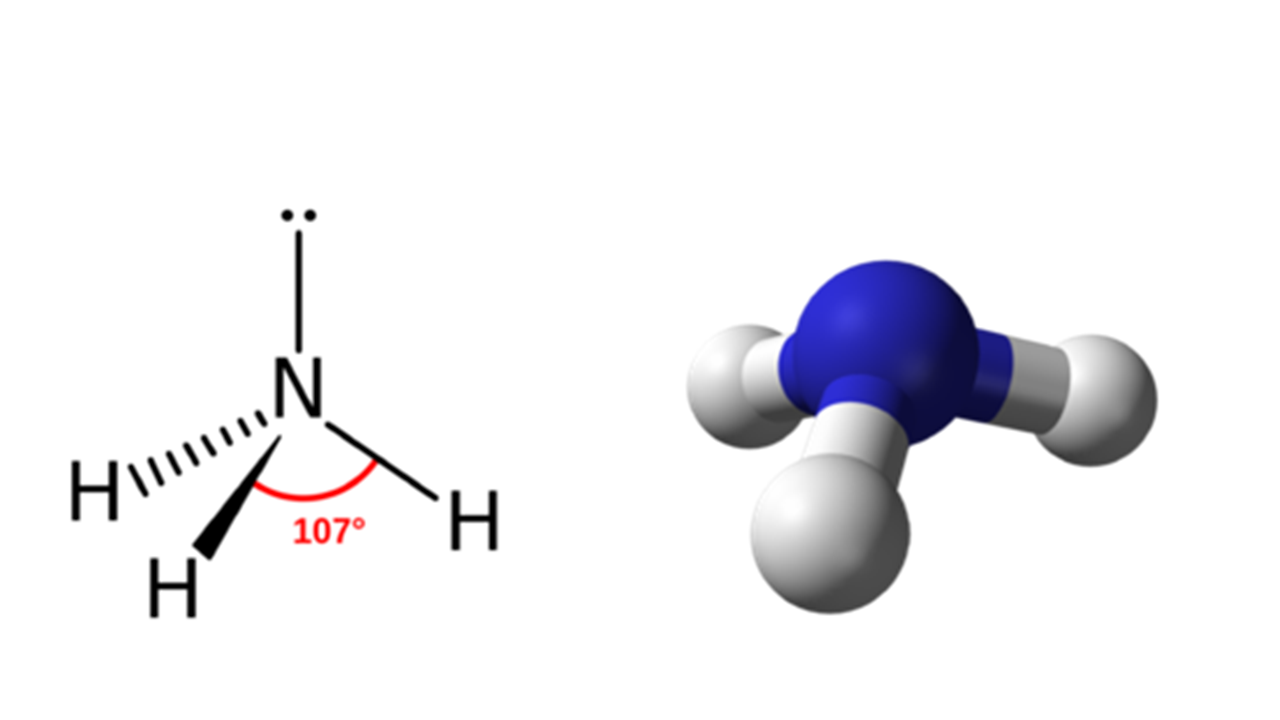

“Point Groups” Trigonal Pyramidal corresponding point group
C3v
σperp and σh are equivalent types of mirror planes? True or False
False
“Matrix Characters” χ(S1 )
1
“Matrix Characters” χ(σ )
1
