M6 C NMR
No description yet. This curated deck is ready for daily study.
Card preview (21)
State the region of the electromagnetic spectrum used in NMR?
Low energy radiowaves
What does the shift tell you in C NMR?
The type of C What it is bonded to C-X
What does the number of peaks tell you in C NMR?
The number of different C environments
State the chemical responsible for the peak at 0 ppm
TMS Tetramethylsilane
State the formula for TMS
(CH3)4Si
Explain why TMS is added to samples in NMR
Internal standard
State a use of NMR in medicine
MRI Scans

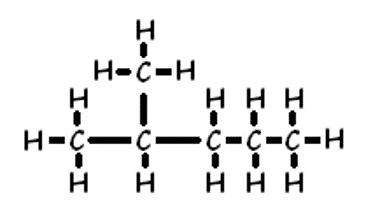

State the number of C environments
3
State the number of C environments
2
State the number of C environments
3
State the number of C environments
2
State the number of C environments
3
State the number of C environments
4
Can C NMR distinguish between these isomers?
Yes 1,2-dimethyl = 4 peaks 1,3-dimethyl = 5 peaks 1,4-dimethyl = 3 peaks
Can C NMR distinguish between these isomers?
No both 2-nitro and 3-nitro would have 7 peaks Yes for 4-nitro As this would have 5 peaks
State the number of C environments
5
State the number of C environments
2

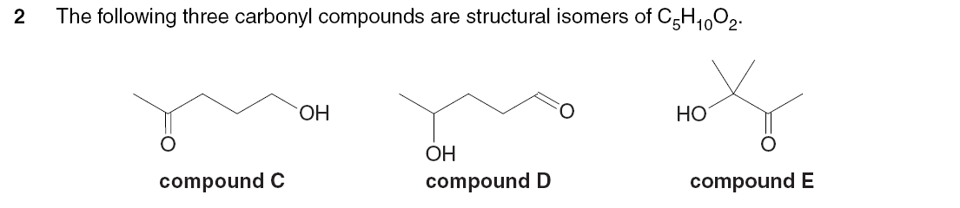

State the number of C environments in each isomer below
C = 5 D = 5 E = 4
State the number of C environments
6
State the number of C environments
6

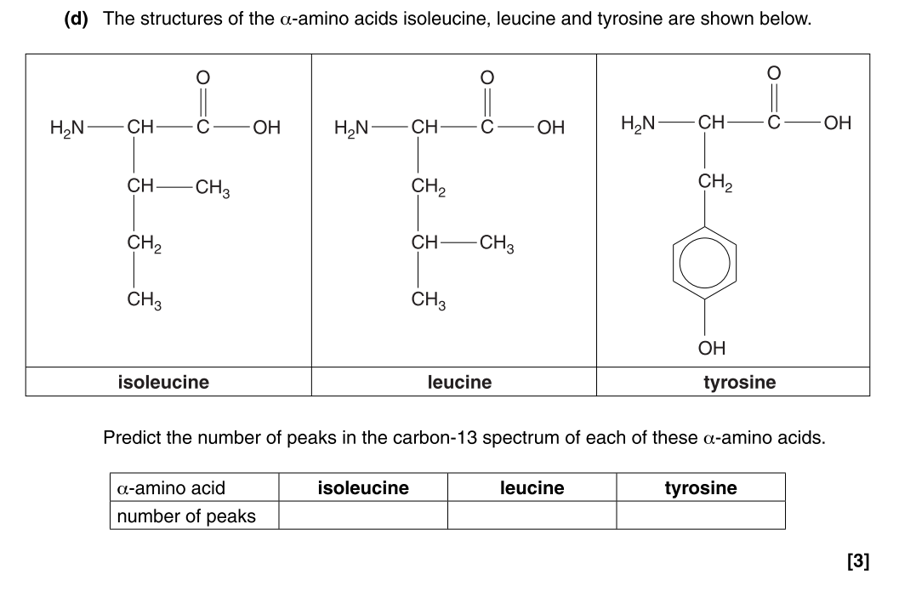

State the number of C environments in each of these amino acids
Isoleucine = 6 leucine = 5 tyrosine = 7
