14. Electrochemical Cells
No description yet. This curated deck is ready for daily study.
Card preview (11)
What is an electrochemical cell?
An arrangement that produces electricity through a chemical reaction

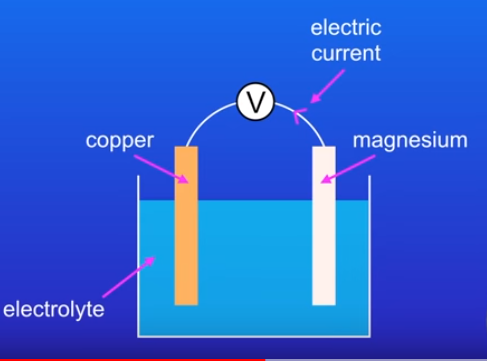

What is the set up for a simple electrochemical cell?
What is an electrolyte?
What is the purpose of the electrolyte?
To complete the circuit
Where does the reaction(s) take place in an electrochemical cell?
On the surfaces of the electrodes (metal strips)
In which direction do the electrons flow?
From the metal higher in the electrochemcial series to one below
Why does a simple cell stop producing electricity
The reaction stops due to chemicals running out
Why is the flow of electrons through the wire lower than it should be in a simple cell?
The metal electrode that is losing electrons is in direct contact with the aqueous ions accepting them
How do we eliminate the possibility of direct displacement in an electrochemical cell?
We use a “half cell” arrangement.

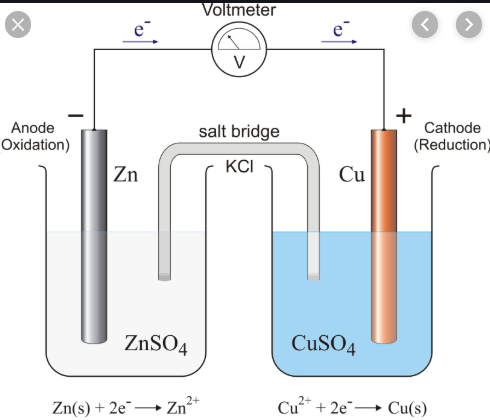

What is the basic half cell arrangement using 2 metals?
2 metals sit in solutions containing their own ions. Bothe these solutions are joined by a salt (or ion) bridge

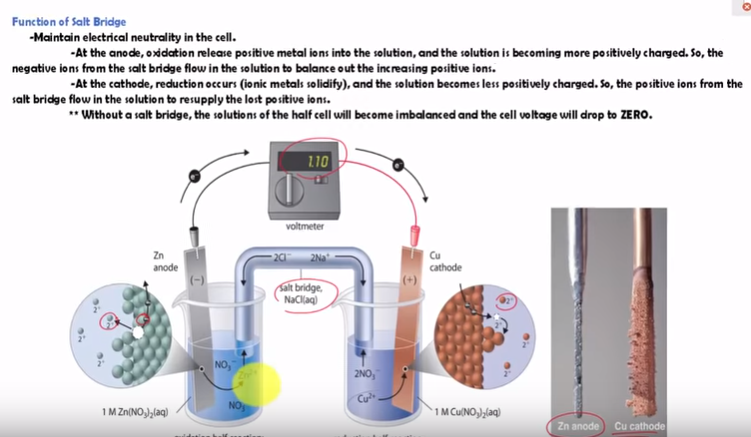

What are the 2 purposes of the salt (ion) bridge in a half cell arrangement
• To complete the circuit • To maintain the charge balance in the cell
