Distributed database management systems

Distributed DB • diffrent DBMS server on different network nodes • autonomous • able to cooperate • Guaranteeing ACID properties require complex techniques Client/server • simplest Data replication • a replica is a copy of the data stored on a different network node • the replication server autonomously manages copy update • simpler architecture than distributed databse Parallel architecture • Performance is the objective • multiprocessor machines vs cpu clusters Data warehouses • decision support

Portability • Capability of moving a program from system to system • for dbs, this is guaranteed by the sql standard Interoperability • capability of different dbms servers to cooperate on a given task • interaction protocols are needed

Compile and go • query sent to server • query prepared (execution plan) • query executed • result shipped Compile and store • query sent to server • query prepared (execution plan) • plan is stored for later use • query exectued • result shipped

Functional: • Appropriate localization of data and applications Technological • Increased data availability • enhanced scalability *

Given a relation R, a data fragment is a subset of R in terms of tuples, or schema or both. Fragmentation criteria: • horizontal • subsets of tuples with same schema of R • obtained by predicate selection (Employee dept=”production) • fragments are not overlapped • vertical • subset of a schema of R • selects a set of columns for each node • primary keys are included • all tuples are included • mixed Properties: • completeness: each information is contained in at least a node • correctness: information in r can be rebuilt from its fragments

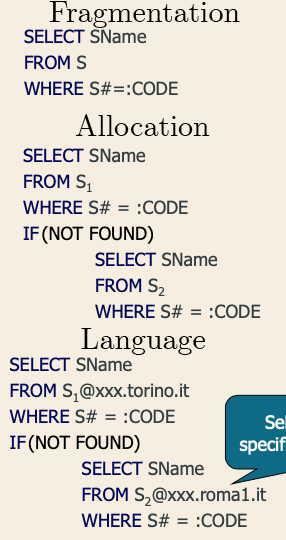

desribe the knowledge of a data distribution an application should operate differently depending on the trasparency level supported by the dbms Fragmentation trasparency • application knows that fragmentation is going on but data distribution is not visible allocation transparency • app. knows fragments but not the allocation • not aware of replicas • must enumerate all fragments language transparency • programmer should select both fragment and allocation • higher level transparency queries are converted to this format

• remote request (read-only on single server) • remote transaction (single server) • distributed transaction (each sql statement is address to one single server) • global atomicity is needed (2PC) • Distributed request • each sql command may refer to data on different nodes • distributed optimization is needed (performed by dbms receiving request) • fragmentation transparency is in this class only

Atomicity • requires 2PC • all nodes partecipating in distributed transaction must implement the same change (commit or rollback) • failure: node, network, network partitioning Consistency • constraints are currently enforced only locally Isolation • requires strict 2PL and 2PC Durability • Requires the extension of a local procedures to manage atomicity in presence of failure

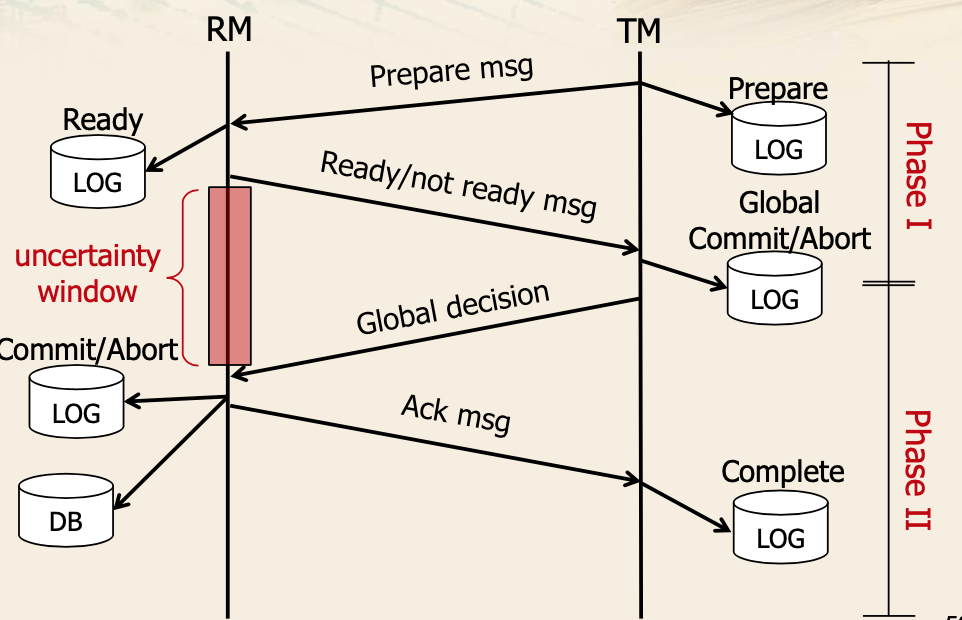

Goal: coordination of the conclusion of a distributed transaction Parallel with a wedding: • Priest coordinates agreement • Couple partecipate in agreement One coordinator (transaction manager), several DBMS servers that partecipate (resource managers), any partecipant can be a coordinator (even client) TM new log records: • Prepare (contains identity of all RMs partecipating) • Global commit/abort • Complete RM new log record: • Ready • RM is willing to perform commit of the transaction • decision cannot be changed afterwards • RM loses its control Protocol • Phase 1 • TM writes prepare record and sends prepapre message to all RMs • TM sets timeout • if RMs receive the message • state = reliable: write ready record, send the ready message • state = not reliable: send not ready, terminate protocol, rollback • state = crashed: no answer • TM collects incoming messages, if it receives not ready or timeout expires launches global abort • Phase 2 • TM sends global decision to RMs and sets timout • RMs wait for glabal decision and when they receive it they commit/abort on the log and send an ACK back • TM waits for all acks to be received, if the timeout expires, another is set (sending again message)

RM • Warm restart procedure is modified with a new case • if last record for transaction T is “ready”, then T does not know global decision • Recovery • Ready list: collecting IDs of all transactions in ready state • for all transactions in the list, the global decision is asked to corresponding TM TM • Messages can be lost • Prepare (out) • Ready (in) • Global decision (out) • Recovery • if last record in the TM log is prepare: global abort decision is written in the log and sent to all RMs (alternative is redo phase, but is not implemented) • if last record in TM log is glabal decision: repeat phase 2 Network problems: • in phase I -> abort • in phase II -> repetition of phase II

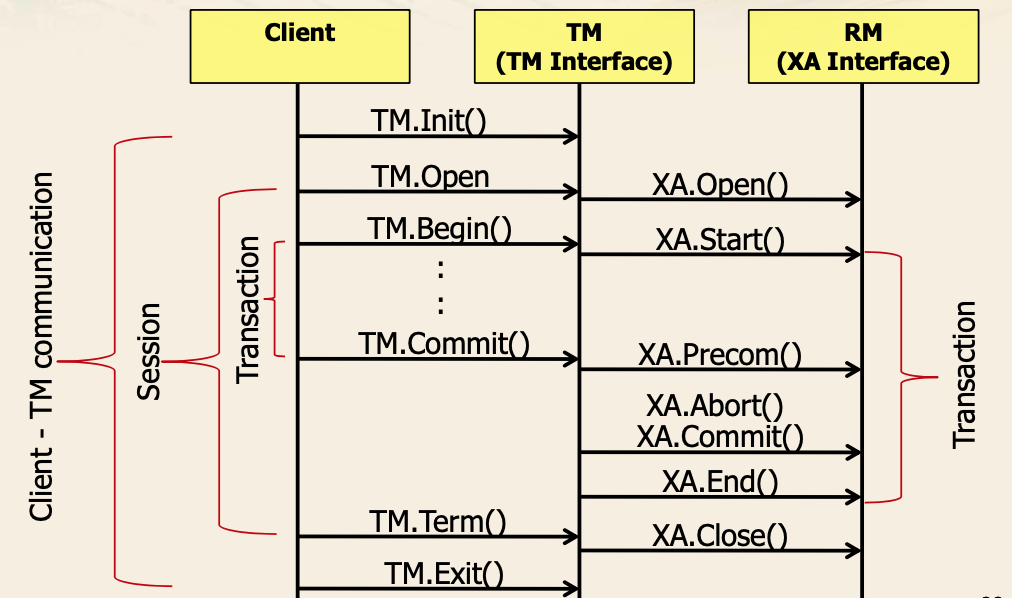

• protocol for coordination of distributed transactions • guarantees interoperability between heterogeneous DBMSs • one client, one TM, several RMs • defines intefaces between client and TM (TM interface) and between TM and RMs (XA interface) • RMs are passive and only answer to TM • 2 optimization of 2PC: • presumed abort: when no info is available in log, TM answers abort to a remote recovery request by RM • reduces number of sync log writes • read only: used be RM that did not modify db during transaction • RM answers ready only to prepare request • does not write log and locally terminated protocol • TM will ignore the RM in phase 2 • Heuristic decision: evolution in presence of TM failures • during uncertainty window • blocked transaction evoleves locally • on TM recovery decisions are compared, if they differ, atomicity is lost and inconsitency is notified. • resolving inconsitency is up to user applications.

Through: multiprocessor systems or computer clusters Queries can be efficiently parallelized: large table scans, group bys Inter-query parallelism: different queries are scheduled on different processors, often used in OLTP systems Intra-query: subparts of the same query are executed on different processors (OLAP, heavy queries)

TPC C (TPC E): emulates OLTP TPC H: OLAP TPCx-HS: Big data management (Hadoop clusters)

It is between when the RM send the ready/not ready message until it receives the global decision from the TM. Local resoruces are locked during this time. That is why the uncertainty windows should be as small as possible.
