Combined Physics - P2 Electricity
No description yet. This curated deck is ready for daily study.
Card preview (24)

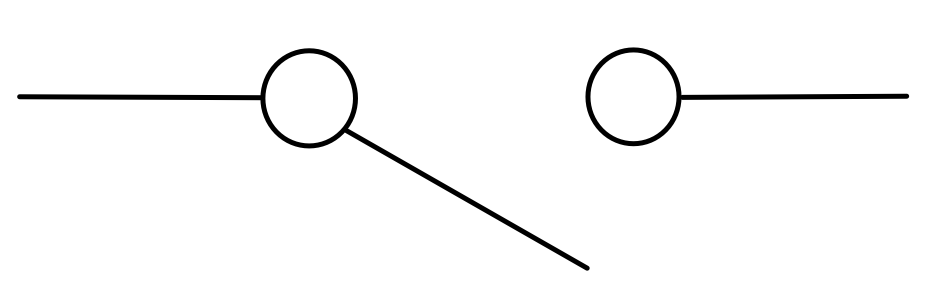

What is the circuit symbol for an open switch?

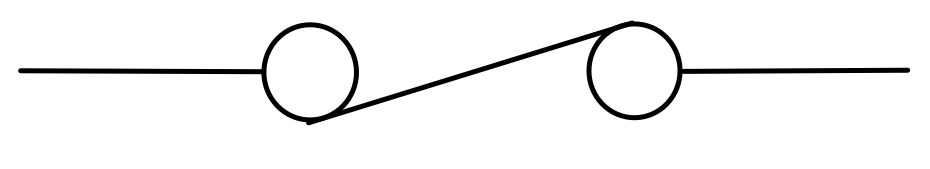

What is the circuit symbol for a closed switch?

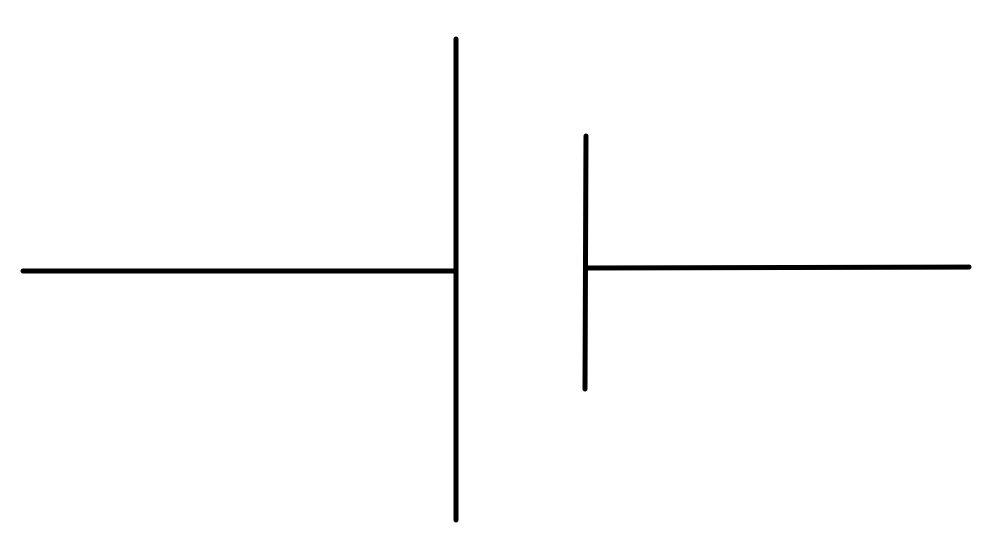

What is the circuit symbol for a cell?

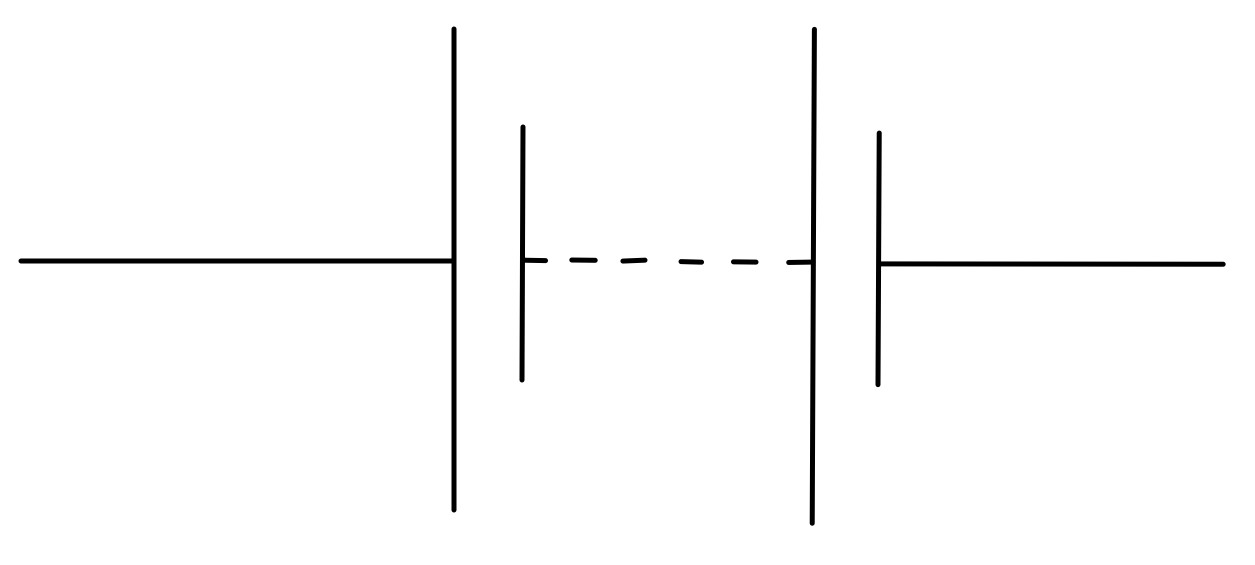

What is the circuit symbol for a battery?

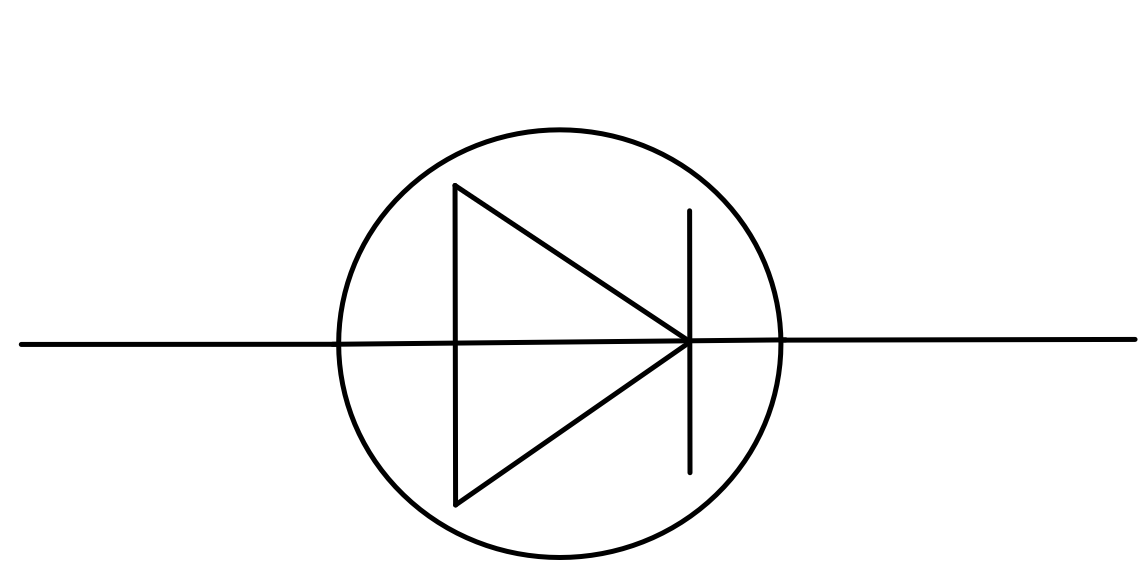

What is the circuit symbol for a diode?

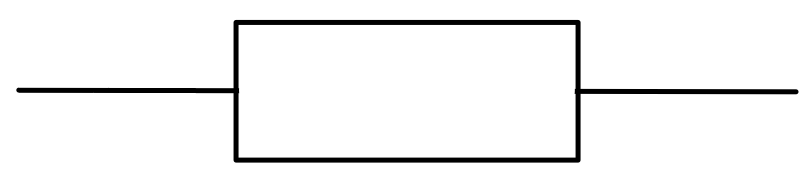

What is the circuit symbol for a resistor?
What is the circuit symbol for a variable resistor?

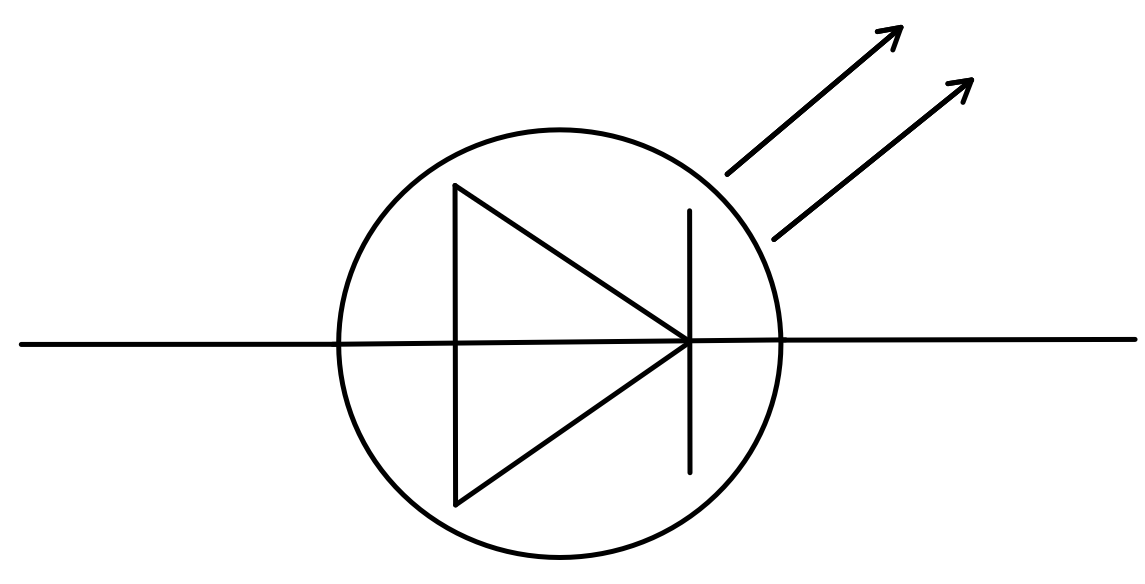

What is the circuit symbol for an LED?

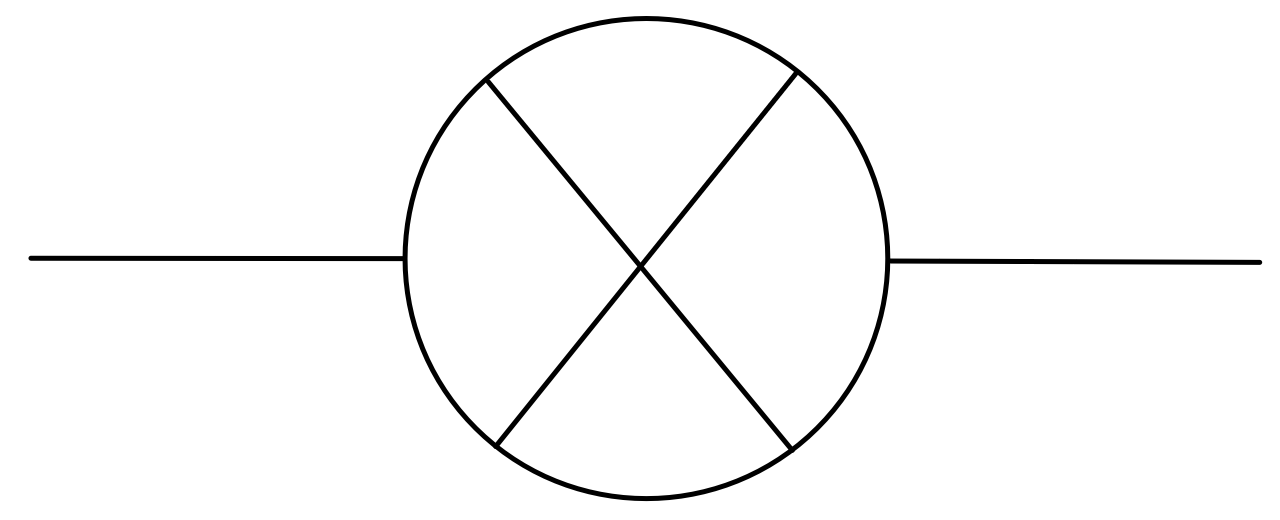

What is the circuit symbol for a lamp?

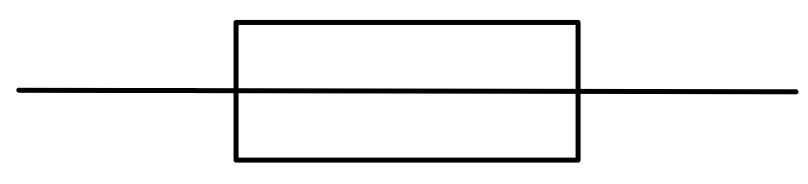

What is the circuit symbol for a fuse?

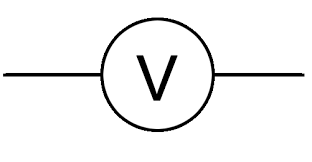

What is the circuit symbol for a voltmeter?

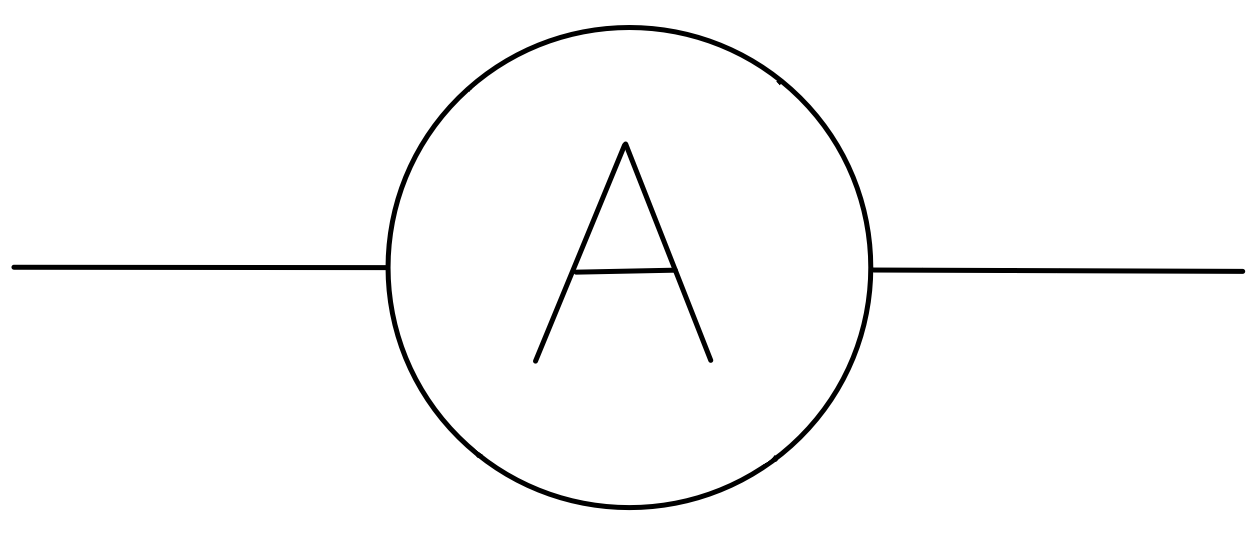

What is the circuit symbol for an ammeter?
What is the circuit symbol for a thermistor?

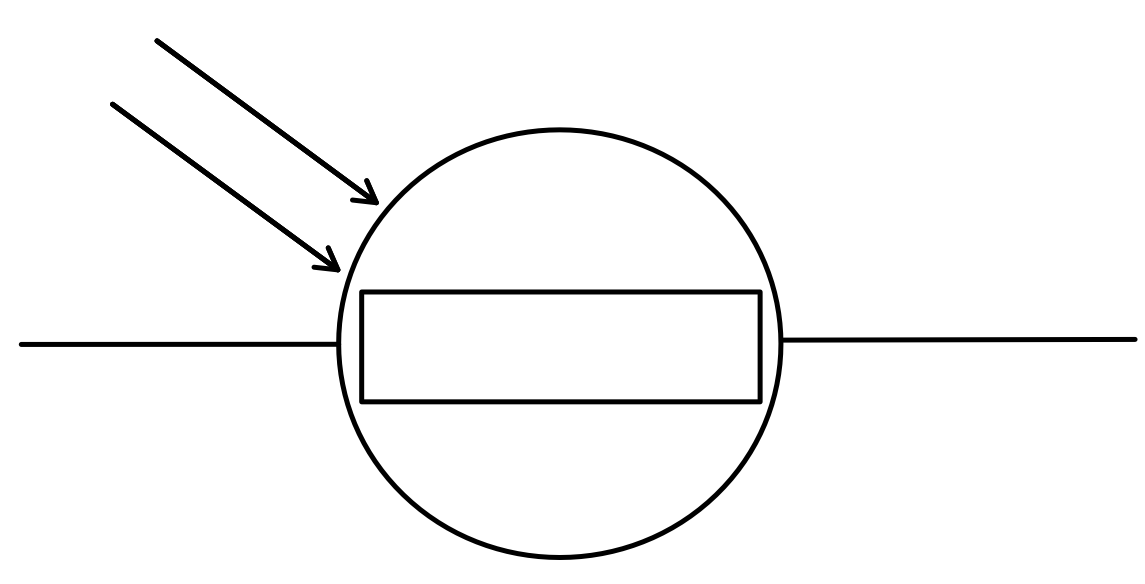

What is the circuit symbol for an LDR?
What is current?
The rate of flow of charge
What equation links charge flow, current and time?
Charge flow = current x time Q = I t

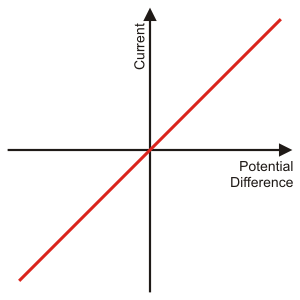

Describe the IV graph for a resistor at constant temperature.
• Current is directly proportional to potential difference. • Resistance is constant.

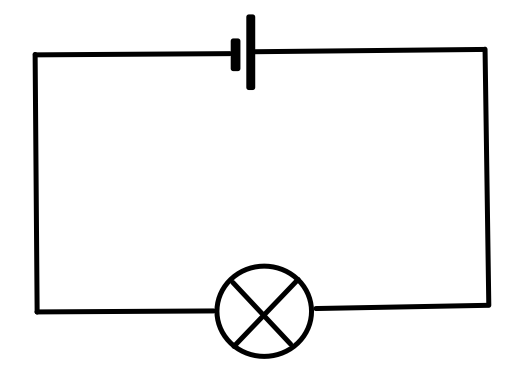

What type of circuit is shown in the image?
Series circuit

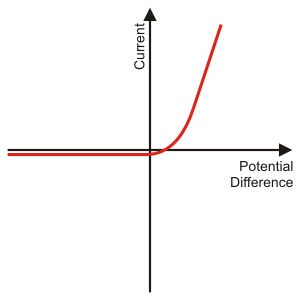

Explain the shape of the IV graph for a diode.
• Current only flows in one direction through a diode. • There is high resistance in the opposite direction meaning current doesn’t flow.
What equation links potential difference, current and resistance?
Potential difference = current x resistance V = I R
What type of circuit is shown in the image?
Parallel circuit
Draw an I-V graph for a filament lamp.
For a given potential difference, what happens to the current when the resistance increases?
The current decreases.

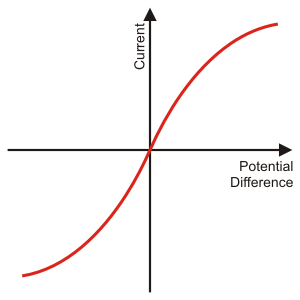

Explain the shape of the IV graph for a filament lamp.
As the current increases the temperature of the filament lamp increases (so the resistance increases) meaning less current can flow per unit potential difference.
