NMR

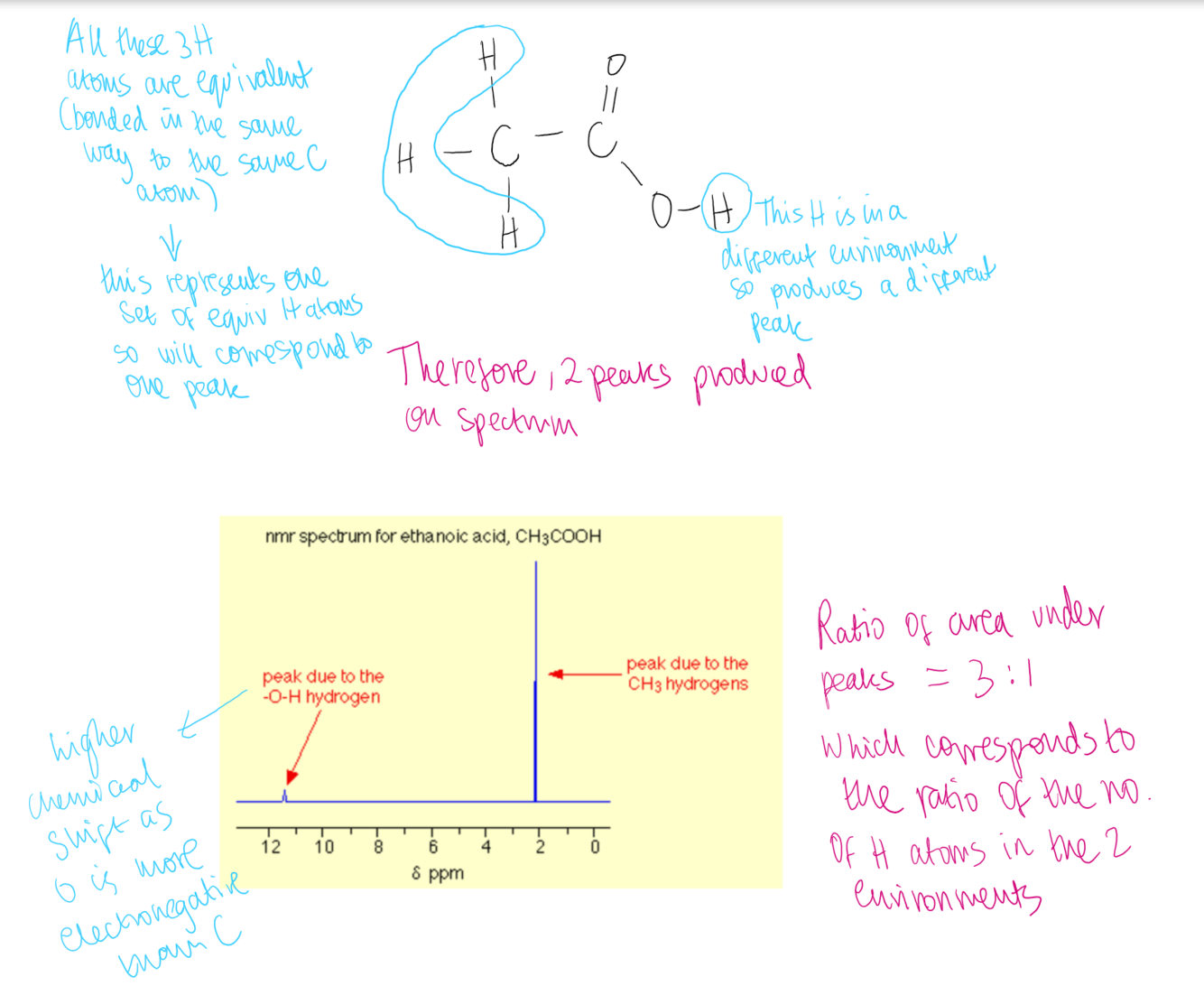

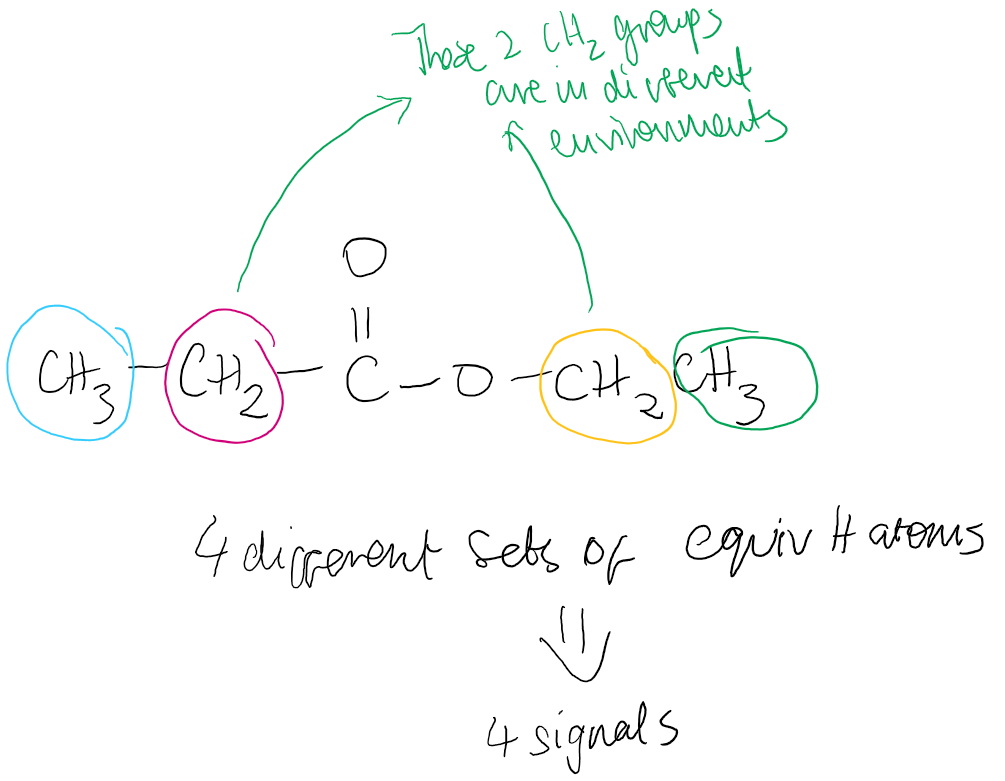

• one peak for each set of equivalent H atoms • equivalent H atoms are bonded to the same groups/atoms • the intensity of the peak is proportional to the number of equivalent H atoms within the set • area of peak is proportional to the number of H atoms it represents - given as a number usually a decimal • the simplest whole number ratio of the relative areas tells you how many equivalent H atoms for each peak • chemical shift tells you how far along the x-axis the peak will be found • protons in the same environment are shifted by the same amount • the size of chemical shift depends on the atoms/groups bonded to the H • the more electronegative the group , the greater the shift *

to prevent signals in spectrum due to H atoms in solvent CCl4 and CDCl3

TMS (tetramethylsilane) low electronegativity of Si means the signal produced is far away to the right from other organic molecules (chemical shift of 0ppm) only produces one signal as all H and C atoms in the same environment non-toxic inert volatile due to low BP so easily removed from sample

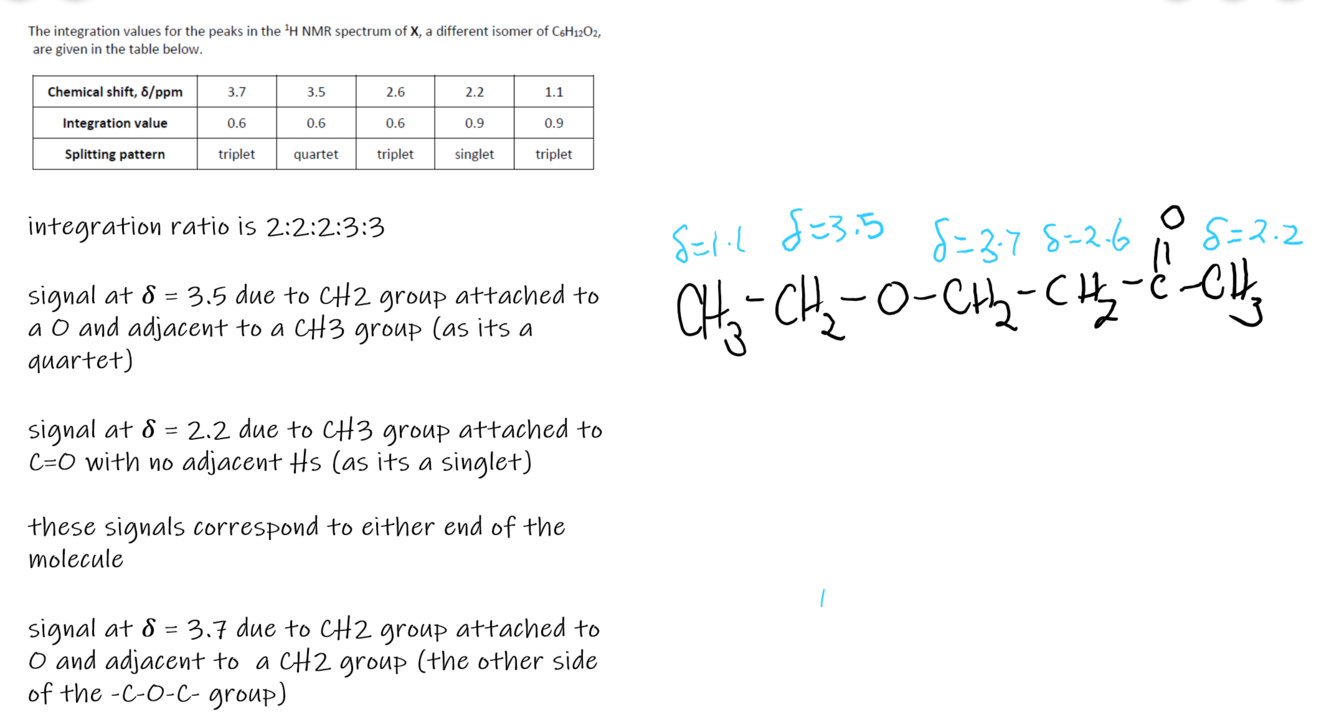

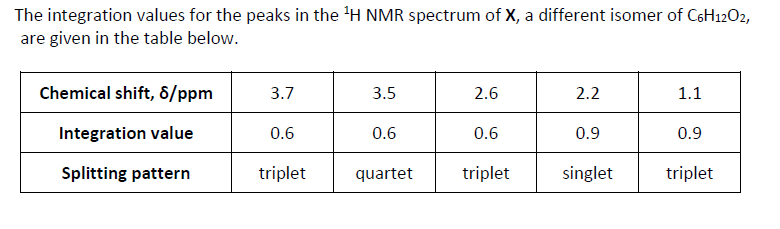

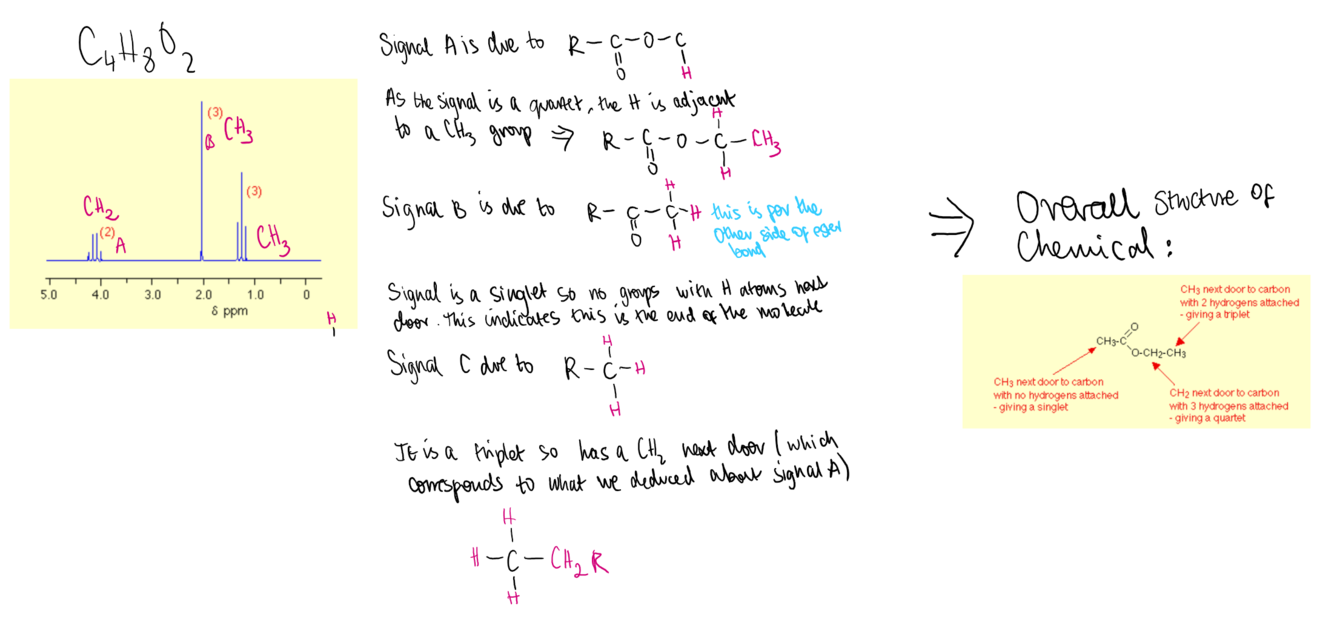

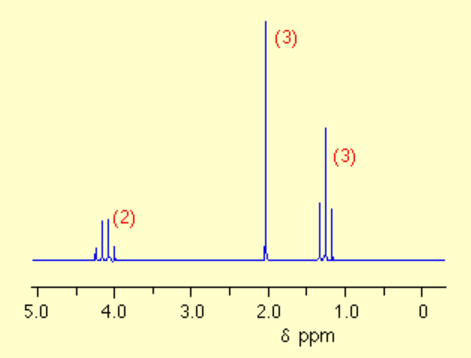

the number of smaller peaks a signal is split into gives us information about the H atoms on adjacent C atoms n+1 rule = number of Hs on adjacent Carbon + 1

when you see a quartet and a triplet this usually indicates a ethyl group is present

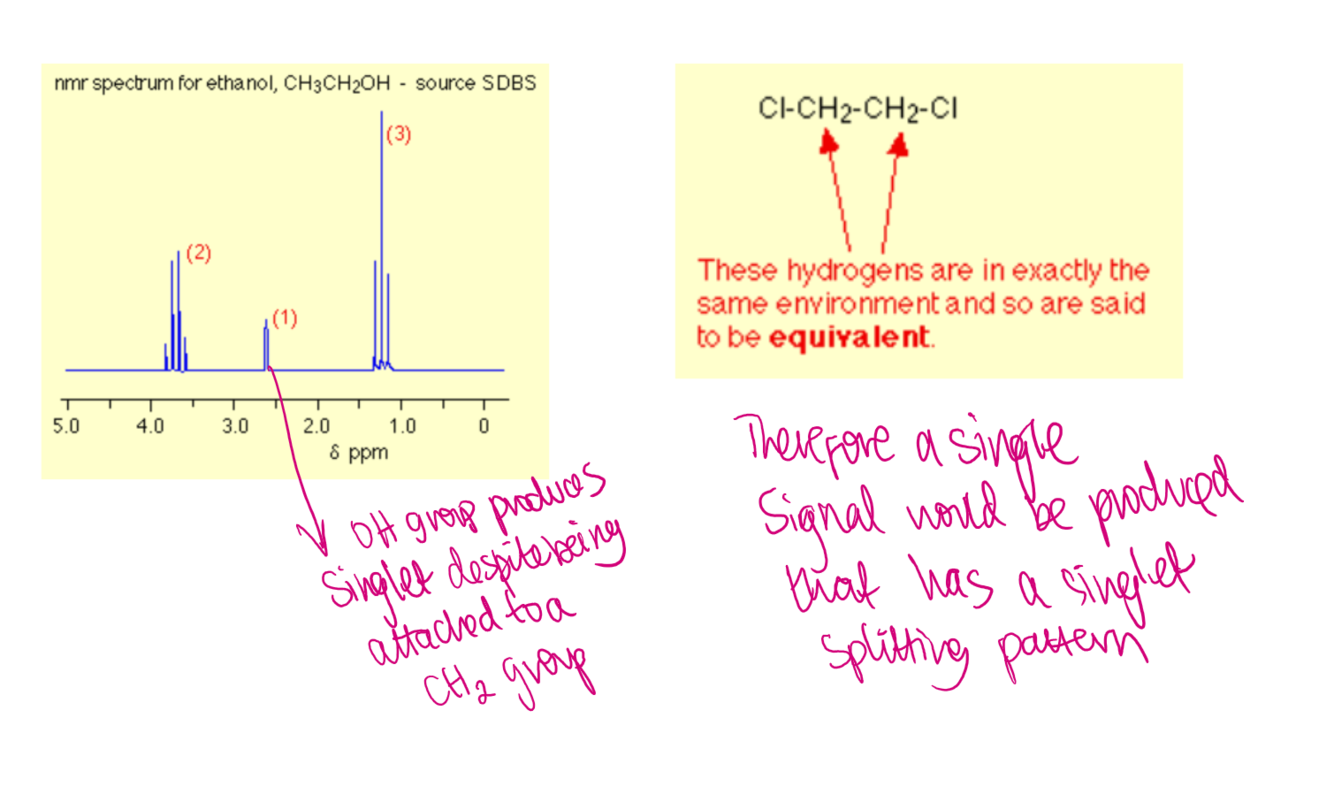

equivalent H atoms on the next atoms and OH groups do not cause splitting (so produce a singlet)

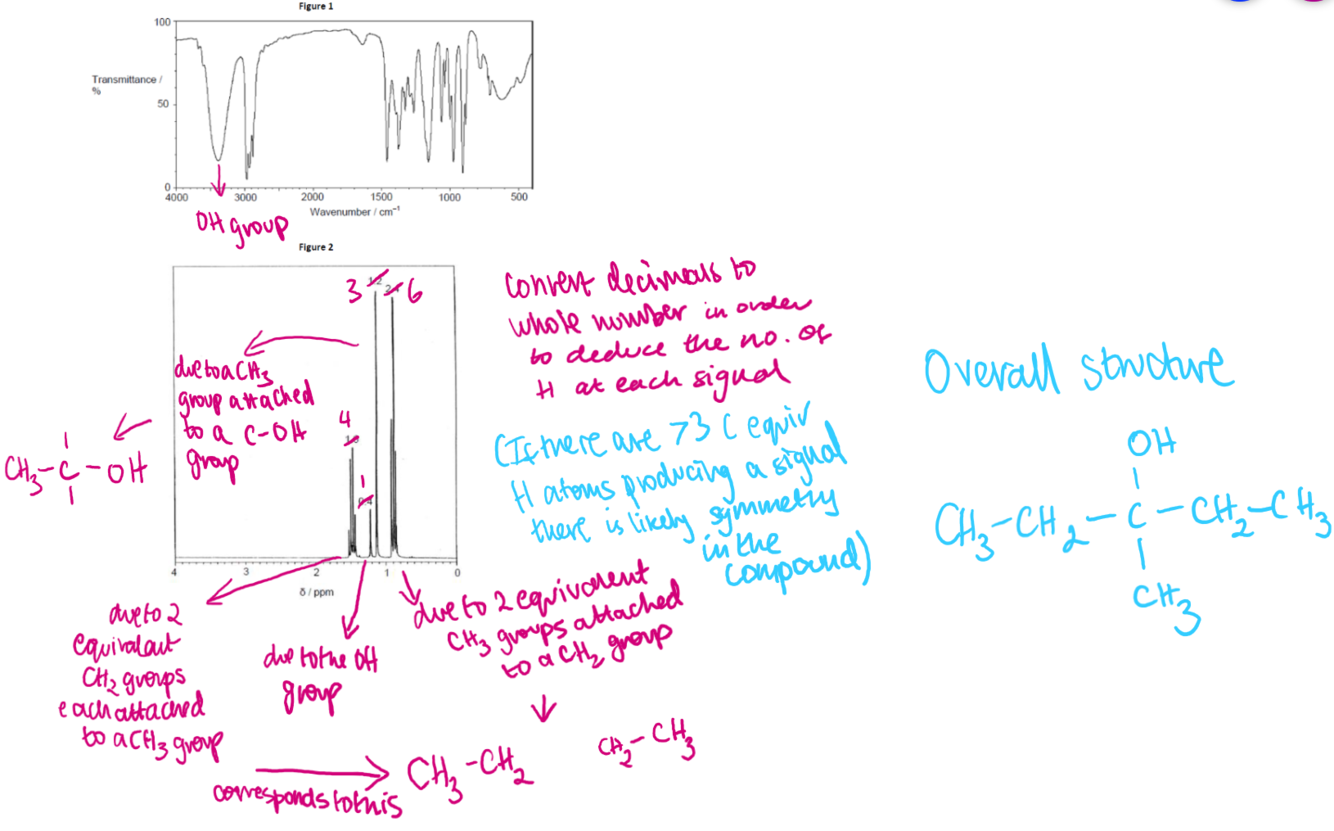

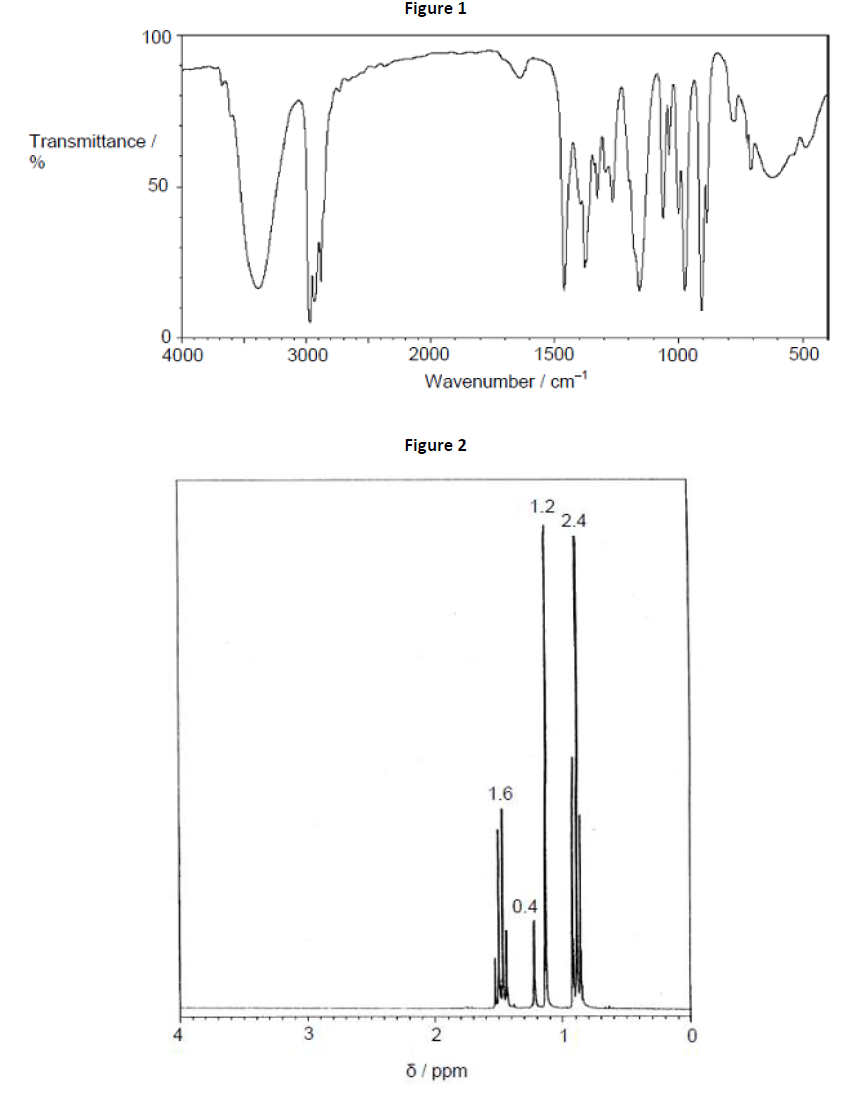

the IR spectrum tell us the O is part of an OH group integration ratio is 4:1:3:6 4 peaks so there are 4 different H environments singlet with integration 1 must be due to H in OH alcohol group singlet with integration 3 due to CH3 with no adjacent H (attached to 3 R groups) quartet + triplet indicates CH3CH2 group integration 4 and 6 indicates there are 2 CH3CH2 groups

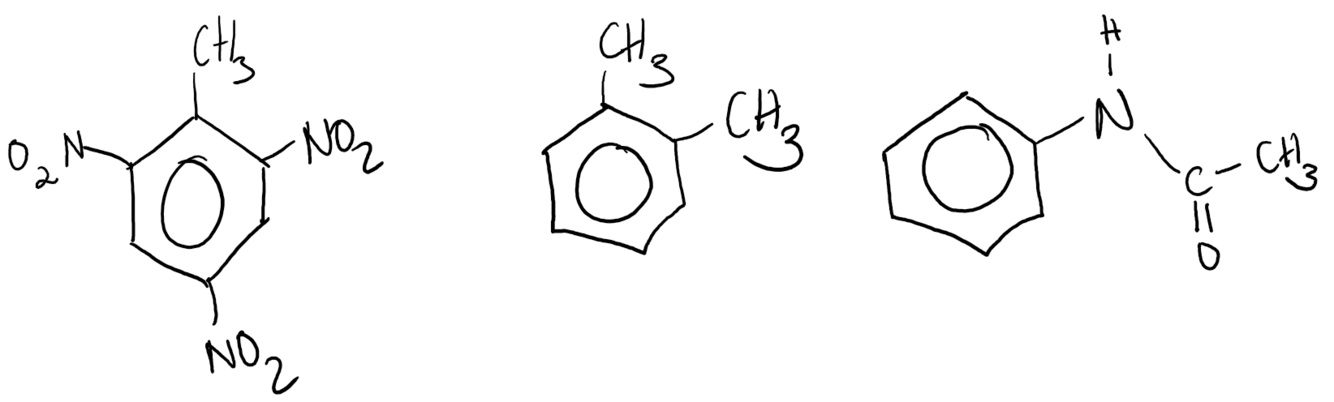

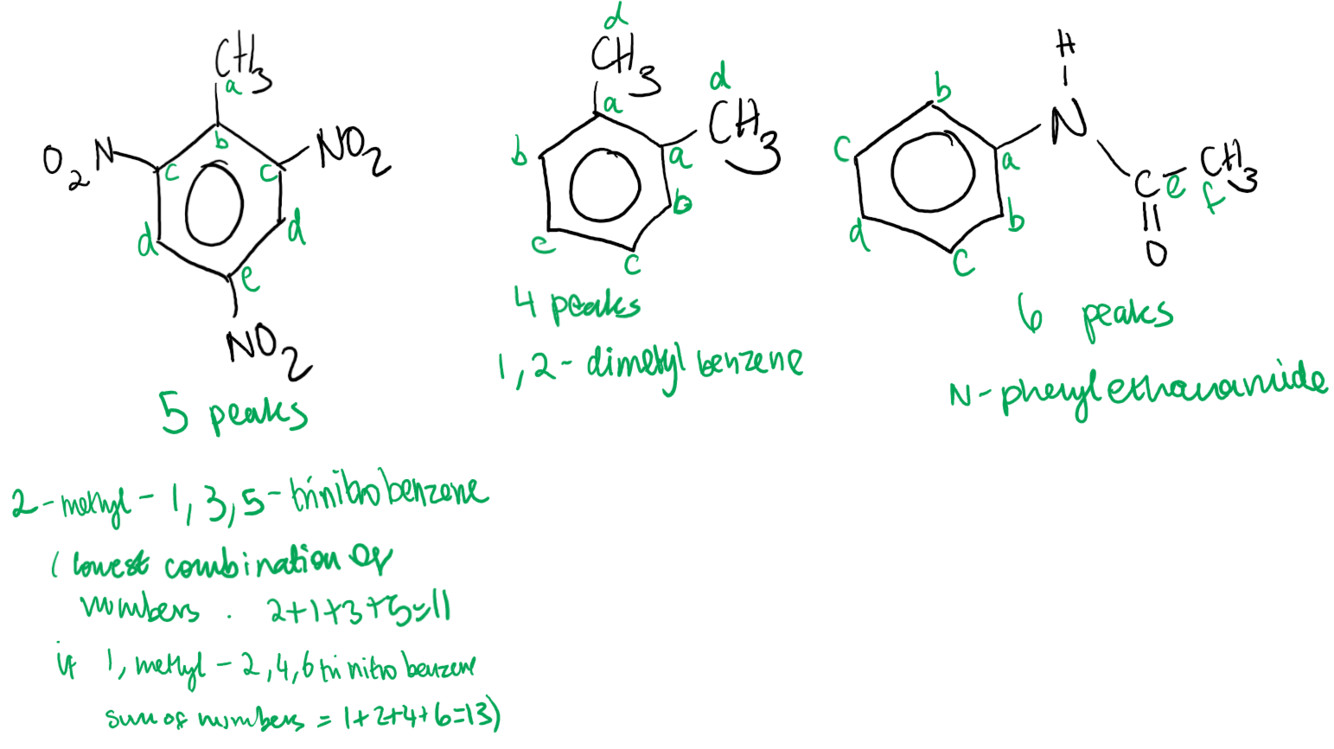

no link between area under peak and number of equivalent C atoms no splitting spectrum contains a number of single peak that correspond to the number of sets of equivalent C atoms, the chemical shift determines how far along the x-axis the peak is
